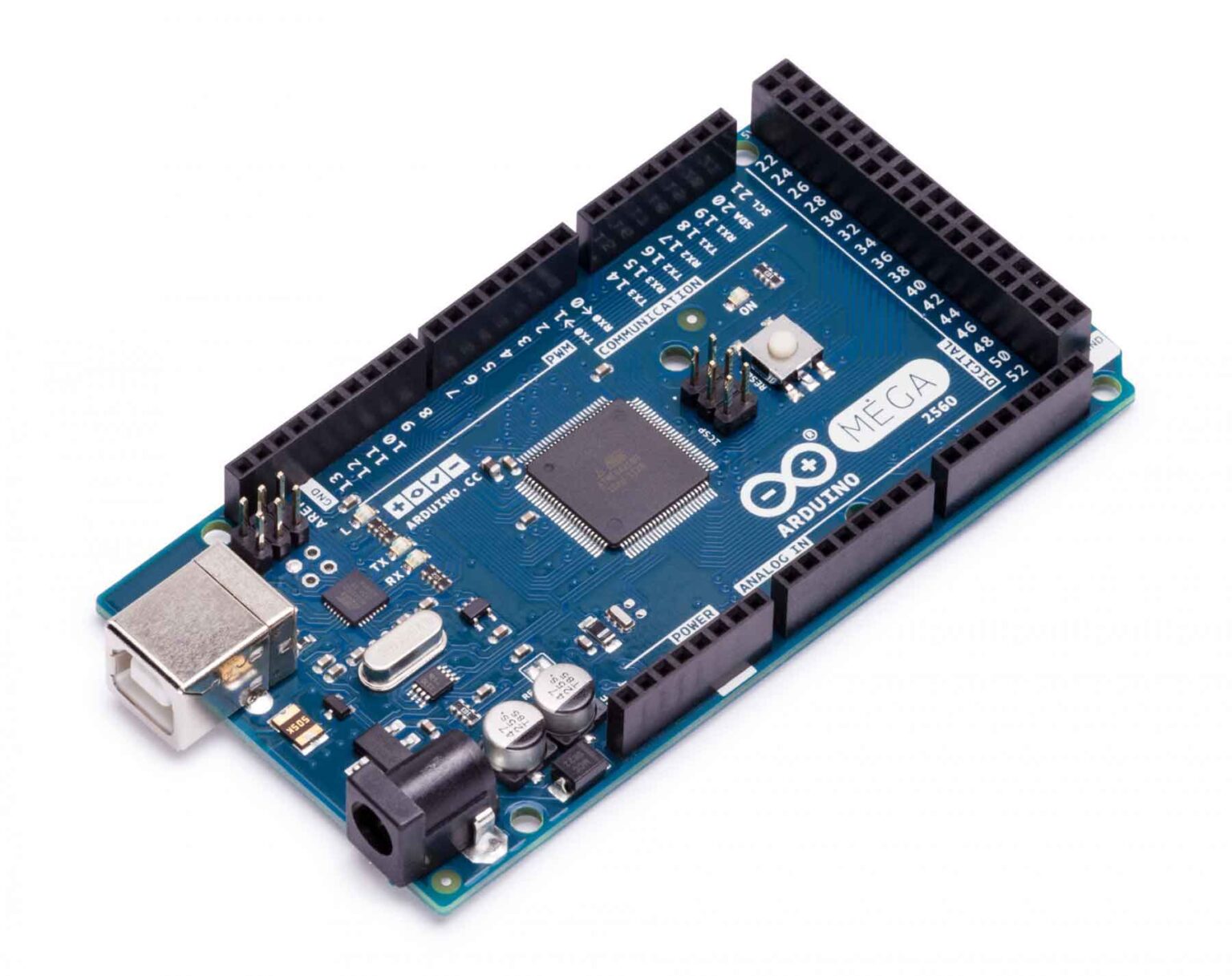

Arduino Mega 2560 Rev3

Description

The Arduino Mega 2560 Rev3 is a versatile microcontroller board based on the ATmega2560 chip. Designed for projects that require more I/O options and memory, it features 256 KB of flash memory and 54 digital I/O pins. This board supports multiple serial ports for easy communication with various devices, making it suitable for applications like robotics, automation, and data collection. Its compatibility with existing Arduino shields allows for straightforward integration and expansion, making it an excellent choice for both beginners and experienced developers looking to create innovative electronic projects.

Key Features & Benefits

High Pin Count: 54 digital I/O pins and 16 analog inputs, allowing for extensive connectivity with various sensors and modules.
Multiple Serial Ports: Four hardware serial ports enable seamless communication with multiple devices, perfect for complex projects.
Compatibility: Fully compatible with existing Arduino shields, enabling easy integration and expansion of functionalities.

Applications

Robotics: The Mega 2560 Rev3’s robust processing capabilities make it ideal for advanced robotic applications. Its compatibility with motor controller shields allows simultaneous control of multiple motors, while its numerous I/O pins accommodate a wide range of sensors.
3D Printing: Designed to handle complex algorithms for 3D printing, the board allows users to easily customize and modify code via the Arduino IDE, adapting printing programs to specific needs.
Wi-Fi: Wireless functionality expands application possibilities. The Mega 2560 Rev3 supports Wi-Fi® shields, enabling connectivity for robotics and 3D printing projects, facilitating remote operation and efficient data communication.
Memory: The ATmega2560 features 4kb (4096 bytes) of EEPROM, a memory which is not erased when powered off and With 256 KB of flash memory, it supports larger codebases and more complex applications without performance compromise.

Specifications:

Microcontroller: ATmega2560
Operating Voltage: 5V
DC Current per I/O Pin: 20 mA
Supported battery: 9V battery
Power Supply Connector: Barrel Plug
Input Voltage (recommended): 7-12V
USB connector: USB-B
Digital I/O Pins: 54 (15 PWM outputs)
Analog Input Pins: 16
Flash Memory: 256 KB (of which 8 KB used by bootloader)
SRAM: 8 KB
EEPROM: 4 KB
Clock Speed: 16 MHz
Dimensions: 101.52 mm x 53.3 mm
Weight: 37g
