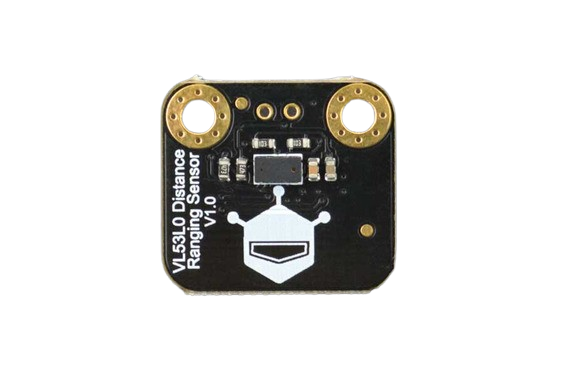

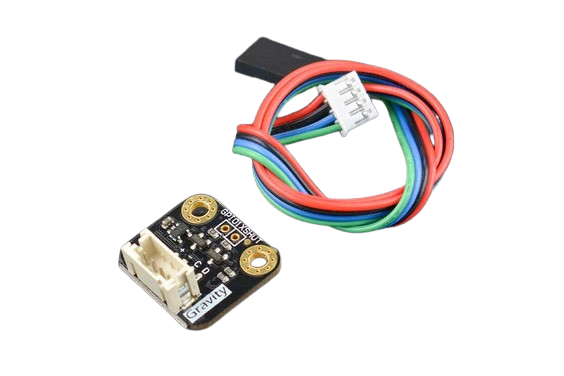

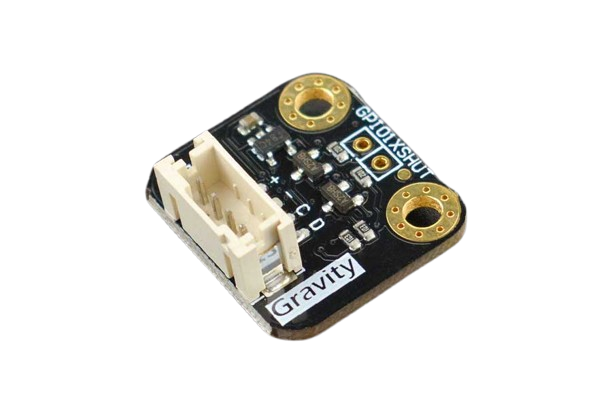

Gravity Vl53l0x Tof Laser Range Finder

Gravity VL53L0X ToF Laser Range Finder – Precise Distance Sensing in a Compact Module

The Gravity VL53L0X Time-of-Flight (ToF) Laser Range Finder is a high-precision distance measurement sensor designed for fast and accurate detection of nearby objects. Using infrared laser technology, this module can measure distances up to 2 meters with high consistency, even in challenging lighting conditions.

Thanks to DFRobot’s Gravity interface, this sensor is plug-and-play friendly, making it ideal for beginners and professionals alike. Whether you’re building a smart robot, a gesture-based interface, or a proximity alert system, this ToF sensor delivers reliable and repeatable measurements.

Key Features:

• Time-of-Flight ranging technology for accurate and non-contact distance measurement
• I2C communication with easy Gravity connector for rapid prototyping
• Small form factor perfect for embedded systems and portable devices
• Eye-safe 940nm laser (Class 1) for safe indoor and outdoor use
• Low power consumption, suitable for battery-powered projects

Applications:

• Obstacle avoidance for robots and drones
• Smart gesture detection and interactive control systems
• Accurate level sensing and object positioning
• Presence detection and automated lighting
• IoT and smart home integration

Technical Specifications:

• Sensor Model: VL53L0X
• Interface: Gravity (I2C)
• I2C Address: Default 0x29 (changeable)
• Power supply: 3.3-5V DC
• Operating Voltage: 2.8V
• Distance Range: 30mm – 2000mm (best at short range)
• Infrared emitter: 940nm
• Accuracy: ±3% depending on ambient light and surface reflectivity
• Response Time: <30ms
• Light Source: 940nm Class 1 Infrared Laser
• Field of View: ~25°
• Operating Temperature: -20°C to +70°C
• Dimensions: 22mm x 30mm
• Mounting: 4 mounting holes for easy installation
• Product Size: 20*22 mm/0.787*0.866 inche
