Current Shunt Resistor – 100A

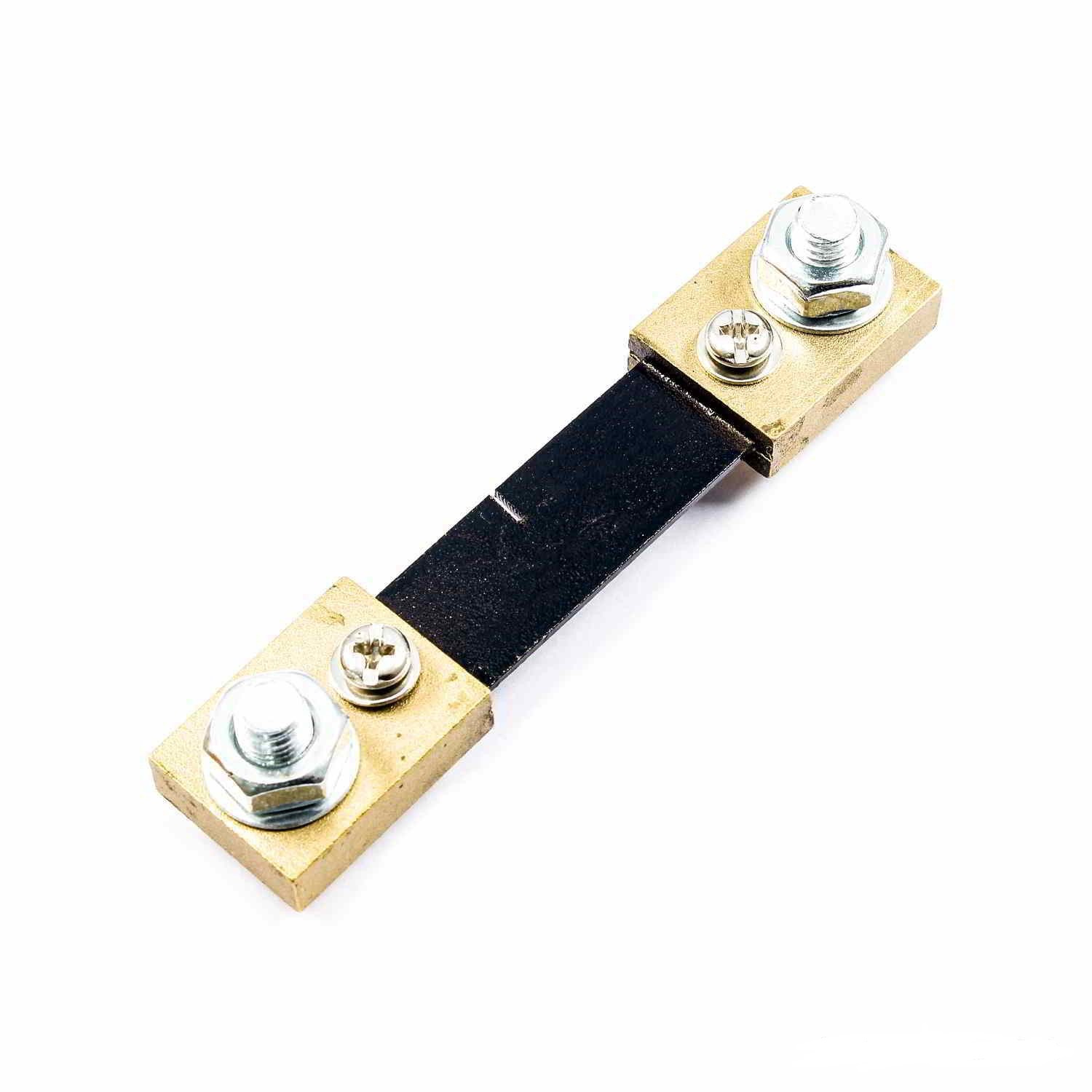

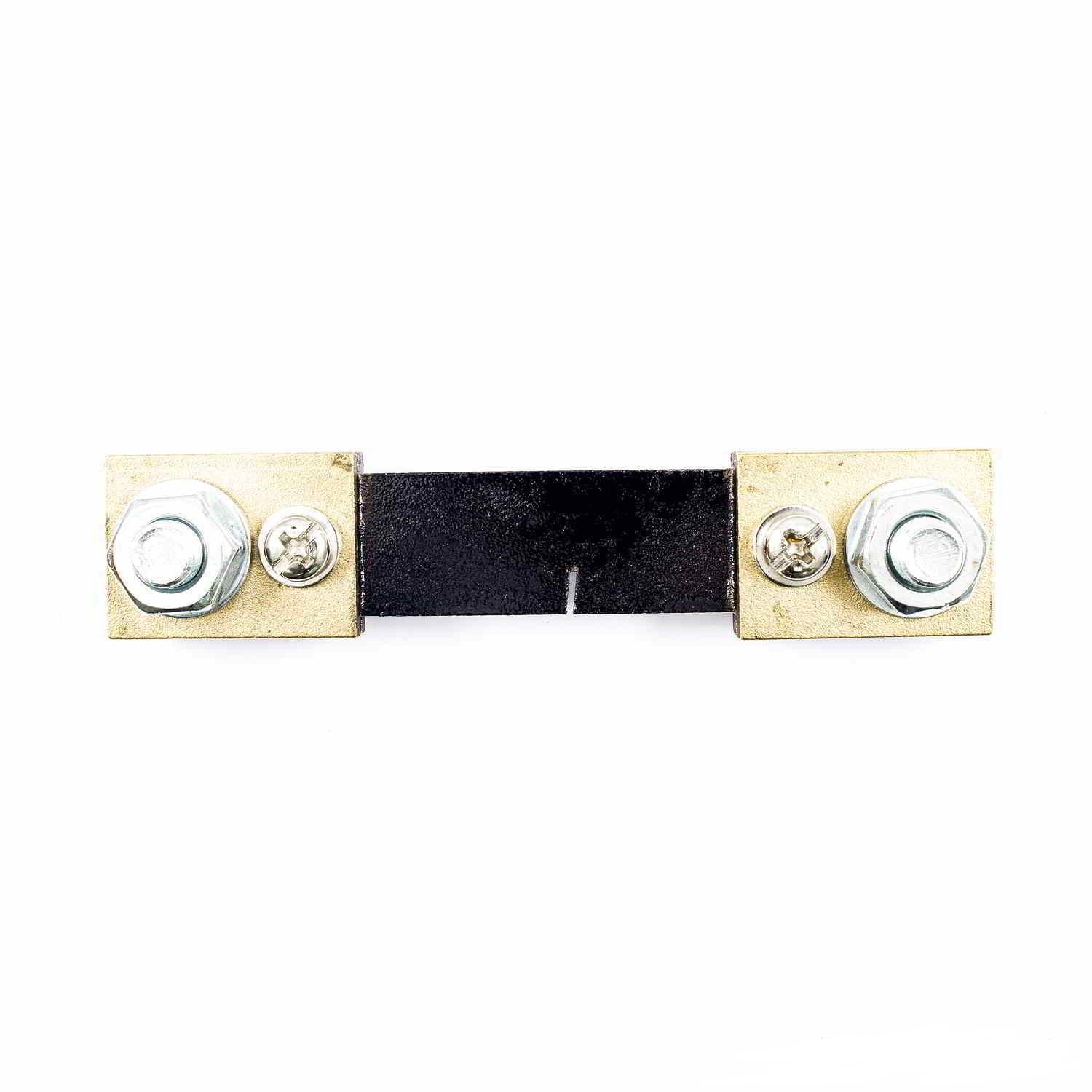

100A Current Shunt Resistor

The 100A Shunt Resistor is a high-precision component designed to measure large currents in DC circuits. It’s ideal for use with digital ammeters, voltmeters, power meters, and battery management systems. Built with durable materials and precise calibration, this shunt ensures stable and accurate current sensing up to 100 Amps. It’s commonly used in automotive, solar energy systems, power supplies, and industrial monitoring applications.

Applications:

• DC power supplies
• Battery charging/discharging systems
• Solar energy monitoring
• Electric vehicle power management
• Inverters and industrial equipment
• DIY electronics projects

Features:

• High-accuracy current measurement up to 100A
• Ideal for battery discharge monitoring and power metering
• Compatible with analog and digital measuring instruments
• Compact and rugged design
• Flame-resistant base
• Easy to install with screw terminals

Specifications:

• Rated Current: 100A
• Voltage Drop: 75mV
• Accuracy: ±0.5%
• Model: FL-2
• Mounting Type: Screw terminal mount
• Operating Voltage Range: 0~100V DC
• Operating Temperature: -40°C to +60°C
• Dimensions: 10.8 x 2.3 x 1cm / 4″ x 0.9″ x 0.4″(L*W*H)
